In Stock
Component Details

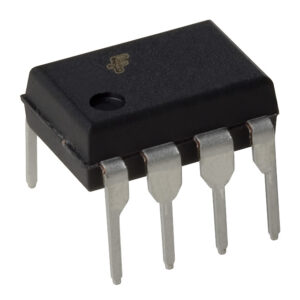

- Part Number
FOD3180- Manufacturer
- onsemi
- DigiKey P/N
FOD3180-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- 100 units
- Manufacturer Stock
- 13,000 units
- Lead Time
- 17 weeks
- Reference Price (1 pc)
- $3.2200
- Price (100 pc)
- $1.8366
Specifications
| Parameter | Value |
|---|---|
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Pulse Width Distortion (Max) | 65ns |
| Rise / Fall Time (Typ) | 75ns, 55ns |
| Current - Output High, Low | 2A, 2A |
| Current - Peak Output | 2.5A |
| Voltage - Forward (Vf) (Typ) | 1.43V |
| Current - DC Forward (If) (Max) | 25 mA |
| Voltage - Output Supply | 10V ~ 20V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | cUL, UL |
Datasheet
Download FOD3180 Datasheet (PDF)Need the FOD3180?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the FOD3180 by onsemi? This 2.5a gate driver optical coupling 5000vrms 1 channel 8-dip is currently available. ICCorders offers competitive pricing with verified, tested components and payment terms.
The FOD3180 is classified under Isolators – Gate Drivers in the Isolators category.
FOD3180 Specifications
| Parameter | Value |
|---|---|
| Technology | Optical Coupling |
| Number of Channels | 1 |
| Voltage – Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 15kV/µs |
| Propagation Delay tpLH / tpHL (Max) | 200ns, 200ns |
| Pulse Width Distortion (Max) | 65ns |
| Rise / Fall Time (Typ) | 75ns, 55ns |
| Current – Output High, Low | 2A, 2A |
| Current – Peak Output | 2.5A |
| Voltage – Forward (Vf) (Typ) | 1.43V |
| Current – DC Forward (If) (Max) | 25 mA |
| Voltage – Output Supply | 10V ~ 20V |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP (0.300", 7.62mm) |
| Supplier Device Package | 8-DIP |
| Approval Agency | cUL, UL |
Availability & Supply Status
- Status: In Stock
- Lifecycle: Active
- Distribution Stock: 100 units
- Manufacturer Stock: 13,000 units
- Standard Lead Time: 17 weeks
Datasheet
Download the official FOD3180 datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source FOD3180 from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the FOD3180? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
Data last verified: 2 days ago. Availability may have changed — check current stock.
