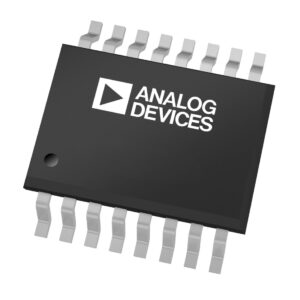

ADUM2400ARWZ by Analog Devices Inc.
General Purpose Digital Isolator 5000Vrms 4 Channel 1Mbps 25kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Component Details
- Part Number
ADUM2400ARWZ- Manufacturer
- Analog Devices Inc.
- DigiKey P/N
505-ADUM2400ARWZ-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- Not available
- Lead Time
- 13 weeks
- Reference Price (1 pc)
- $9.6100
- Price (100 pc)
- $6.6615
Specifications
| Parameter | Value |
|---|---|
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs - Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage - Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
Datasheet
Download ADUM2400ARWZ Datasheet (PDF)Need the ADUM2400ARWZ?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the ADUM2400ARWZ by Analog Devices Inc.? This general purpose digital isolator 5000vrms 4 channel 1mbps 25kv/µs cmti 16-soic (0.295", 7.50mm width) is increasingly difficult to source through standard distribution channels. ICCorders specialises in sourcing hard-to-find and obsolete ICs with full traceability and testing.
The ADUM2400ARWZ is classified under Digital Isolators in the Isolators category, part of the iCoupler® series.
ADUM2400ARWZ Specifications
| Parameter | Value |
|---|---|
| Technology | Magnetic Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 4 |
| Inputs – Side 1/Side 2 | 4/0 |
| Channel Type | Unidirectional |
| Voltage – Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 25kV/µs |
| Data Rate | 1Mbps |
| Propagation Delay tpLH / tpHL (Max) | 100ns, 100ns |
| Pulse Width Distortion (Max) | 40ns |
| Rise / Fall Time (Typ) | 2.5ns, 2.5ns |
| Voltage – Supply | 2.7V ~ 5.5V |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
Availability & Supply Status
- Status: Out of Stock – We Can Help
- Lifecycle: Active
- Distribution Stock: Not available through standard distribution
- Standard Lead Time: 13 weeks
Datasheet
Download the official ADUM2400ARWZ datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
