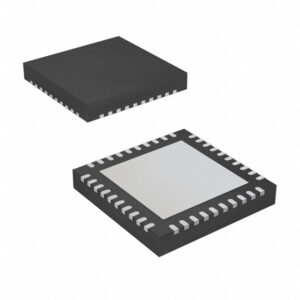

DA14580-01AT2 by Renesas Electronics Corporation
IC RF TxRx + MCU Bluetooth Bluetooth v4.1 2.4GHz 40-VFQFN Exposed Pad
Component Details
- Part Number
DA14580-01AT2- Manufacturer
- Renesas Electronics Corporation
- DigiKey P/N
1564-1013-2-ND- Lifecycle
- End of Life
Stock & Pricing
- Distribution Stock
- Not available
- Lead Time
- 12 weeks
- Reference Price (1 pc)
- $3.1816
Specifications
| Parameter | Value |
|---|---|
| DigiKey Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.1 |
| Frequency | 2.4GHz |
| Power - Output | -1dBm |
| Sensitivity | -93dBm |
| Memory Size | 32kB OTP, 84kB ROM, 50kB SRAM |
| Serial Interfaces | I2C, SPI, UART |
| GPIO | 24 |
| Voltage - Supply | 2.35V ~ 3.3V |
| Current - Receiving | 3.7mA |
| Current - Transmitting | 3.4mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (5x5) |
Packaging Options
| Package | DigiKey P/N | Stock | MOQ | Price (1) |
|---|---|---|---|---|
| Tape & Reel (TR) | 1564-1013-2-ND |
0 | 5,000 | $3.1816 |
| Cut Tape (CT) | 1564-1013-1-ND |
0 | 1 | $4.9900 |
| Digi-Reel® | 1564-1013-6-ND |
0 | 1 | $4.9900 |
Datasheet
Download DA14580-01AT2 Datasheet (PDF)Need the DA14580-01AT2?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the DA14580-01AT2 by Renesas Electronics Corporation? This ic rf txrx + mcu bluetooth bluetooth v4.1 2.4ghz 40-vfqfn exposed pad is showing supply chain risk indicators that may affect availability. ICCorders can help secure stock before it becomes unavailable.
The DA14580-01AT2 is classified under RF Transceiver ICs in the RF and Wireless category.
DA14580-01AT2 Specifications
| Parameter | Value |
|---|---|
| DigiKey Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | Bluetooth |
| Protocol | Bluetooth v4.1 |
| Frequency | 2.4GHz |
| Power – Output | -1dBm |
| Sensitivity | -93dBm |
| Memory Size | 32kB OTP, 84kB ROM, 50kB SRAM |
| Serial Interfaces | I2C, SPI, UART |
| GPIO | 24 |
| Voltage – Supply | 2.35V ~ 3.3V |
| Current – Receiving | 3.7mA |
| Current – Transmitting | 3.4mA |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Surface Mount |
| Package / Case | 40-VFQFN Exposed Pad |
| Supplier Device Package | 40-QFN (5×5) |
Availability & Supply Status
- Status: End of Life – Stock Available
- Lifecycle: End of Life
- Distribution Stock: Not available through standard distribution
- Standard Lead Time: 12 weeks
Datasheet
Download the official DA14580-01AT2 datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source DA14580-01AT2 from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the DA14580-01AT2? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
Data last verified: 2 weeks ago. Availability may have changed — check current stock.
