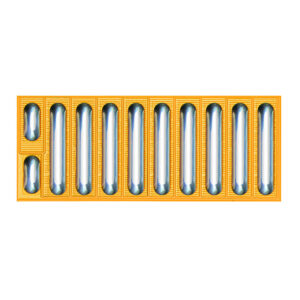

EPC2001C by EPC
N-Channel 100 V 36A (Ta) Surface Mount Die
Component Details
- Part Number
EPC2001C- Manufacturer
- EPC
- DigiKey P/N
917-1079-2-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- 22,144 units
- Lead Time
- 16 weeks
- Reference Price (1 pc)
- $2.3250
Specifications
| Parameter | Value |
|---|---|
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current - Continuous Drain (Id) @ 25°C | 36A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 25A, 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 5 V |
| Vgs (Max) | +6V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 900 pF @ 50 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Die |
| Package / Case | Die |
Packaging Options
| Package | DigiKey P/N | Stock | MOQ | Price (1) |
|---|---|---|---|---|
| Tape & Reel (TR) | 917-1079-2-ND |
21,700 | 2,500 | $2.3250 |
| Cut Tape (CT) | 917-1079-1-ND |
22,144 | 1 | $6.3900 |
| Digi-Reel® | 917-1079-6-ND |
22,144 | 1 | $6.3900 |
Datasheet
Download EPC2001C Datasheet (PDF)Need the EPC2001C?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the EPC2001C by EPC? This n-channel 100 v 36a (ta) surface mount die is currently available. ICCorders offers competitive pricing with verified, tested components and payment terms.
The EPC2001C is classified under Transistors in the Discrete Semiconductor Products category, part of the eGaN® series.
EPC2001C Specifications
| Parameter | Value |
|---|---|
| FET Type | N-Channel |
| Technology | GaNFET (Gallium Nitride) |
| Drain to Source Voltage (Vdss) | 100 V |
| Current – Continuous Drain (Id) @ 25°C | 36A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On) | 5V |
| Rds On (Max) @ Id, Vgs | 7mOhm @ 25A, 5V |
| Vgs(th) (Max) @ Id | 2.5V @ 5mA |
| Gate Charge (Qg) (Max) @ Vgs | 9 nC @ 5 V |
| Vgs (Max) | +6V, -4V |
| Input Capacitance (Ciss) (Max) @ Vds | 900 pF @ 50 V |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | Die |
| Package / Case | Die |
Availability & Supply Status
- Status: In Stock
- Lifecycle: Active
- Distribution Stock: 22,144 units
- Standard Lead Time: 16 weeks
Datasheet
Download the official EPC2001C datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source EPC2001C from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the EPC2001C? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
Data last verified: 2 weeks ago. Availability may have changed — check current stock.
