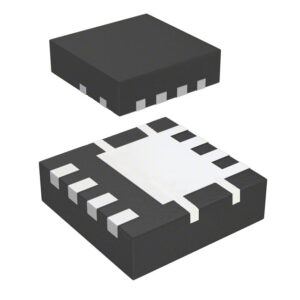

FDMC8296 by onsemi
N-Channel 30 V 12A (Ta), 18A (Tc) 2.3W (Ta), 27W (Tc) Surface Mount 8-MLP (3.3x3.3)
Component Details
- Part Number
FDMC8296- Manufacturer
- onsemi
- DigiKey P/N
2832-FDMC8296TR-ND- Lifecycle
- Obsolete
Stock & Pricing
- Distribution Stock
- 1,004 units
- Lead Time
- 41 weeks
- Reference Price (1 pc)
- $0.5700
Specifications
| Parameter | Value |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1385 pF @ 15 V |
| Power Dissipation (Max) | 2.3W (Ta), 27W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MLP (3.3x3.3) |
| Package / Case | 8-PowerWDFN |
Packaging Options
| Package | DigiKey P/N | Stock | MOQ | Price (1) |
|---|---|---|---|---|
| Tape & Reel (TR) | 2832-FDMC8296TR-ND |
1,004 | 1,004 | $0.5700 |
| Tape & Reel (TR) | FDMC8296TR-ND |
0 | - | - |
Datasheet
Download FDMC8296 Datasheet (PDF)Need the FDMC8296?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the FDMC8296 by onsemi? This n-channel 30 v 12a (ta), 18a (tc) 2.3w (ta), 27w (tc) surface mount 8-mlp (3.3×3.3) is increasingly difficult to source through standard distribution channels. ICCorders specialises in sourcing hard-to-find and obsolete ICs with full traceability and testing.
The FDMC8296 is classified under Transistors in the Discrete Semiconductor Products category, part of the PowerTrench® series.
FDMC8296 Specifications
| Parameter | Value |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current – Continuous Drain (Id) @ 25°C | 12A (Ta), 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 12A, 10V |
| Vgs(th) (Max) @ Id | 3V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 23 nC @ 10 V |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1385 pF @ 15 V |
| Power Dissipation (Max) | 2.3W (Ta), 27W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 8-MLP (3.3×3.3) |
| Package / Case | 8-PowerWDFN |
Availability & Supply Status
- Status: Obsolete – We Can Source
- Lifecycle: Obsolete
- Distribution Stock: 1,004 units
- Standard Lead Time: 41 weeks
- Last Time Buy Date: 8 October 2021
Datasheet
Download the official FDMC8296 datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source FDMC8296 from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the FDMC8296? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
Data last verified: 3 weeks ago. Availability may have changed — check current stock.
