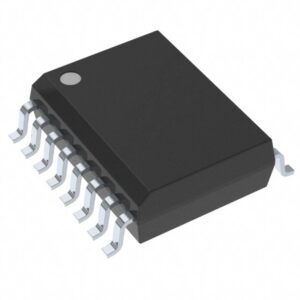

ISO7763DWR by Texas Instruments
General Purpose Digital Isolator 5000Vrms 6 Channel 100Mbps 85kV/µs CMTI 16-SOIC (0.295", 7.50mm Width)
Component Details
- Part Number
ISO7763DWR- Manufacturer
- Texas Instruments
- DigiKey P/N
296-ISO7763DWRTR-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- 1,007 units
- Lead Time
- 12 weeks
- Reference Price (1 pc)
- $2.0563
Specifications
| Parameter | Value |
|---|---|
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs - Side 1/Side 2 | 3/3 |
| Channel Type | Unidirectional |
| Voltage - Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 85kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 16ns, 16ns |
| Pulse Width Distortion (Max) | 4.9ns |
| Rise / Fall Time (Typ) | 1.1ns, 1.4ns |
| Voltage - Supply | 2.25V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
Packaging Options
| Package | DigiKey P/N | Stock | MOQ | Price (1) |
|---|---|---|---|---|
| Tape & Reel (TR) | 296-ISO7763DWRTR-ND |
0 | 2,000 | $2.0563 |
| Cut Tape (CT) | 296-ISO7763DWRCT-ND |
1,007 | 1 | $3.8400 |
| Digi-Reel® | 296-ISO7763DWRDKR-ND |
1,007 | 1 | $3.8400 |
Datasheet
Download ISO7763DWR Datasheet (PDF)Need the ISO7763DWR?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the ISO7763DWR by Texas Instruments? This general purpose digital isolator 5000vrms 6 channel 100mbps 85kv/µs cmti 16-soic (0.295", 7.50mm width) is currently available. ICCorders offers competitive pricing with verified, tested components and payment terms.
The ISO7763DWR is classified under Digital Isolators in the Isolators category, part of the ISO776x series.
ISO7763DWR Specifications
| Parameter | Value |
|---|---|
| Technology | Capacitive Coupling |
| Type | General Purpose |
| Isolated Power | No |
| Number of Channels | 6 |
| Inputs – Side 1/Side 2 | 3/3 |
| Channel Type | Unidirectional |
| Voltage – Isolation | 5000Vrms |
| Common Mode Transient Immunity (Min) | 85kV/µs |
| Data Rate | 100Mbps |
| Propagation Delay tpLH / tpHL (Max) | 16ns, 16ns |
| Pulse Width Distortion (Max) | 4.9ns |
| Rise / Fall Time (Typ) | 1.1ns, 1.4ns |
| Voltage – Supply | 2.25V ~ 5.5V |
| Operating Temperature | -55°C ~ 125°C |
| Mounting Type | Surface Mount |
| Package / Case | 16-SOIC (0.295", 7.50mm Width) |
| Supplier Device Package | 16-SOIC |
Availability & Supply Status
- Status: In Stock
- Lifecycle: Active
- Distribution Stock: 1,007 units
- Standard Lead Time: 12 weeks
Datasheet
Download the official ISO7763DWR datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source ISO7763DWR from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the ISO7763DWR? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
Data last verified: 55 minutes ago. Availability may have changed — check current stock.
