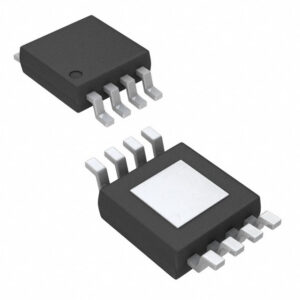

MP2307DN-LF-Z by Monolithic Power Systems Inc.
Buck Switching Regulator IC Positive Adjustable 0.925V 1 Output 3A 8-SOIC (0.154", 3.90mm Width) Exposed Pad
Component Details
- Part Number
MP2307DN-LF-Z- Manufacturer
- Monolithic Power Systems Inc.
- DigiKey P/N
1589-1576-2-ND- Lifecycle
- End of Life
Stock & Pricing
- Distribution Stock
- 1,795 units
- Lead Time
- 24 weeks
- Reference Price (1 pc)
- $2.0119
Specifications
| Parameter | Value |
|---|---|
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 4.75V |
| Voltage - Input (Max) | 23V |
| Voltage - Output (Min/Fixed) | 0.925V |
| Voltage - Output (Max) | 20V |
| Current - Output | 3A |
| Frequency - Switching | 340kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
Packaging Options
| Package | DigiKey P/N | Stock | MOQ | Price (1) |
|---|---|---|---|---|
| Tape & Reel (TR) | 1589-1576-2-ND |
0 | 2,500 | $2.0119 |
| Cut Tape (CT) | 1589-1576-1-ND |
1,795 | 1 | $3.7300 |
| Digi-Reel® | 1589-1576-6-ND |
1,795 | 1 | $3.7300 |
Datasheet
Download MP2307DN-LF-Z Datasheet (PDF)Need the MP2307DN-LF-Z?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the MP2307DN-LF-Z by Monolithic Power Systems Inc.? This buck switching regulator ic positive adjustable 0.925v 1 output 3a 8-soic (0.154", 3.90mm width) exposed pad is showing supply chain risk indicators that may affect availability. ICCorders can help secure stock before it becomes unavailable.
The MP2307DN-LF-Z is classified under Power Management (PMIC) in the Integrated Circuits (ICs) category.
MP2307DN-LF-Z Specifications
| Parameter | Value |
|---|---|
| Function | Step-Down |
| Output Configuration | Positive |
| Topology | Buck |
| Output Type | Adjustable |
| Number of Outputs | 1 |
| Voltage – Input (Min) | 4.75V |
| Voltage – Input (Max) | 23V |
| Voltage – Output (Min/Fixed) | 0.925V |
| Voltage – Output (Max) | 20V |
| Current – Output | 3A |
| Frequency – Switching | 340kHz |
| Synchronous Rectifier | Yes |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) Exposed Pad |
| Supplier Device Package | 8-SOIC-EP |
Availability & Supply Status
- Status: End of Life – Stock Available
- Lifecycle: End of Life
- Distribution Stock: 1,795 units
- Standard Lead Time: 24 weeks
Datasheet
Download the official MP2307DN-LF-Z datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source MP2307DN-LF-Z from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the MP2307DN-LF-Z? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
