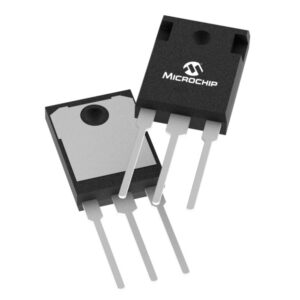

MSC040SMA120B by Microchip Technology
N-Channel 1200 V 66A (Tc) 323W (Tc) Through Hole TO-247-3
Component Details
- Part Number
MSC040SMA120B- Manufacturer
- Microchip Technology
- DigiKey P/N
MSC040SMA120B-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- 21 units
- Lead Time
- 4 weeks
- Reference Price (1 pc)
- $24.2300
- Price (100 pc)
- $18.2601
Specifications
| Parameter | Value |
|---|---|
| FET Type | N-Channel |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 66A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 20V |
| Rds On (Max) @ Id, Vgs | 50mOhm @ 40A, 20V |
| Vgs(th) (Max) @ Id | 2.7V @ 2mA |
| Gate Charge (Qg) (Max) @ Vgs | 137 nC @ 20 V |
| Vgs (Max) | +23V, -10V |
| Input Capacitance (Ciss) (Max) @ Vds | 1990 pF @ 1000 V |
| Power Dissipation (Max) | 323W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Supplier Device Package | TO-247-3 |
| Package / Case | TO-247-3 |
Datasheet
Download MSC040SMA120B Datasheet (PDF)Need the MSC040SMA120B?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the MSC040SMA120B by Microchip Technology? This n-channel 1200 v 66a (tc) 323w (tc) through hole to-247-3 is showing supply chain risk indicators that may affect availability. ICCorders can help secure stock before it becomes unavailable.
The MSC040SMA120B is classified under Transistors in the Discrete Semiconductor Products category, part of the MSiC™ MA series.
