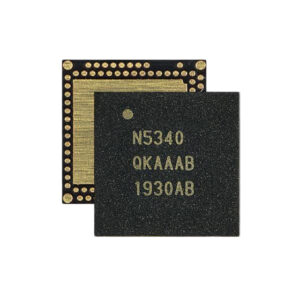

NRF5340-QKAA-R by Nordic Semiconductor ASA
IC RF TxRx + MCU 802.15.4, Bluetooth Bluetooth v5.1, Thread, Zigbee® 2.4GHz 94-VFQFN Dual Rows, Exposed Pad
Component Details
- Part Number
NRF5340-QKAA-R- Manufacturer
- Nordic Semiconductor ASA
- DigiKey P/N
4823-NRF5340-QKAA-RTR-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- Not available
- Lead Time
- 16 weeks
- Reference Price (1 pc)
- $6.0900
Specifications
| Parameter | Value |
|---|---|
| DigiKey Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.1, Thread, Zigbee® |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power - Output | 3dBm |
| Sensitivity | -97.5dBm |
| Memory Size | 1MB Flash, 256kB RAM |
| Serial Interfaces | ADC, I2S, PWM, SPI, UART, USB |
| GPIO | 48 |
| Voltage - Supply | 1.7V ~ 5.5V |
| Current - Receiving | 2.6mA ~ 7mA |
| Current - Transmitting | 3.2mA |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 94-VFQFN Dual Rows, Exposed Pad |
| Supplier Device Package | 94-aQFN (7x7) |
Packaging Options
| Package | DigiKey P/N | Stock | MOQ | Price (1) |
|---|---|---|---|---|
| Tape & Reel (TR) | 4823-NRF5340-QKAA-RTR-ND |
0 | 3,000 | $6.0900 |
| Cut Tape (CT) | 4823-NRF5340-QKAA-RCT-ND |
0 | 1 | $9.7400 |
| Digi-Reel® | 4823-NRF5340-QKAA-RDKR-ND |
0 | 1 | $9.7400 |
Datasheet
Download NRF5340-QKAA-R Datasheet (PDF)Need the NRF5340-QKAA-R?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the NRF5340-QKAA-R by Nordic Semiconductor ASA? This ic rf txrx + mcu 802.15.4, bluetooth bluetooth v5.1, thread, zigbee® 2.4ghz 94-vfqfn dual rows, exposed pad is increasingly difficult to source through standard distribution channels. ICCorders specialises in sourcing hard-to-find and obsolete ICs with full traceability and testing.
The NRF5340-QKAA-R is classified under RF Transceiver ICs in the RF and Wireless category, part of the nRF53 series.
NRF5340-QKAA-R Specifications
| Parameter | Value |
|---|---|
| DigiKey Programmable | Not Verified |
| Type | TxRx + MCU |
| RF Family/Standard | 802.15.4, Bluetooth |
| Protocol | Bluetooth v5.1, Thread, Zigbee® |
| Frequency | 2.4GHz |
| Data Rate (Max) | 2Mbps |
| Power – Output | 3dBm |
| Sensitivity | -97.5dBm |
| Memory Size | 1MB Flash, 256kB RAM |
| Serial Interfaces | ADC, I2S, PWM, SPI, UART, USB |
| GPIO | 48 |
| Voltage – Supply | 1.7V ~ 5.5V |
| Current – Receiving | 2.6mA ~ 7mA |
| Current – Transmitting | 3.2mA |
| Operating Temperature | -40°C ~ 105°C |
| Mounting Type | Surface Mount |
| Package / Case | 94-VFQFN Dual Rows, Exposed Pad |
| Supplier Device Package | 94-aQFN (7×7) |
Availability & Supply Status
- Status: Out of Stock – We Can Help
- Lifecycle: Active
- Distribution Stock: Not available through standard distribution
- Standard Lead Time: 16 weeks
Datasheet
Download the official NRF5340-QKAA-R datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source NRF5340-QKAA-R from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the NRF5340-QKAA-R? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
