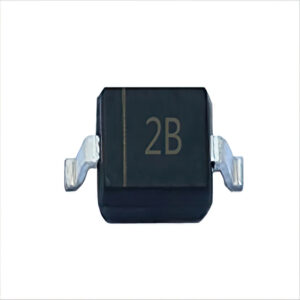

PESD12VL1BA by UMW
26V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
Component Details
- Part Number
PESD12VL1BA- Manufacturer
- UMW
- DigiKey P/N
4518-PESD12VL1BATR-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- Not available
- Lead Time
- 8 weeks
- Reference Price (1 pc)
- $0.1131
Specifications
| Parameter | Value |
|---|---|
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 12V (Max) |
| Voltage - Breakdown (Min) | 13.3V |
| Voltage - Clamping (Max) @ Ipp | 26V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power - Peak Pulse | 260W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
Packaging Options
| Package | DigiKey P/N | Stock | MOQ | Price (1) |
|---|---|---|---|---|
| Tape & Reel (TR) | 4518-PESD12VL1BATR-ND |
0 | 3,000 | $0.1131 |
| Cut Tape (CT) | 4518-PESD12VL1BACT-ND |
0 | 1 | $0.5100 |
| Digi-Reel® | 4518-PESD12VL1BADKR-ND |
0 | 1 | $0.5100 |
Datasheet
Download PESD12VL1BA Datasheet (PDF)Need the PESD12VL1BA?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the PESD12VL1BA by UMW? This 26v clamp 10a (8/20µs) ipp tvs diode surface mount sod-323 is increasingly difficult to source through standard distribution channels. ICCorders specialises in sourcing hard-to-find and obsolete ICs with full traceability and testing.
The PESD12VL1BA is classified under Transient Voltage Suppressors (TVS) in the Circuit Protection category, part of the UMW series.
PESD12VL1BA Specifications
| Parameter | Value |
|---|---|
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage – Reverse Standoff (Typ) | 12V (Max) |
| Voltage – Breakdown (Min) | 13.3V |
| Voltage – Clamping (Max) @ Ipp | 26V |
| Current – Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power – Peak Pulse | 260W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 30pF @ 1MHz |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
