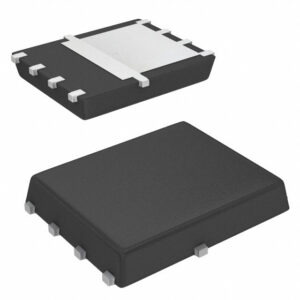

SIR404DP-T1-GE3 by Vishay Siliconix
N-Channel 20 V 60A (Tc) 6.25W (Ta), 104W (Tc) Surface Mount PowerPAK® SO-8
Component Details
- Part Number
SIR404DP-T1-GE3- Manufacturer
- Vishay Siliconix
- DigiKey P/N
SIR404DP-T1-GE3TR-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- 9,811 units
- Lead Time
- 38 weeks
- Reference Price (1 pc)
- $0.8673
Specifications
| Parameter | Value |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current - Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 8130 pF @ 10 V |
| Power Dissipation (Max) | 6.25W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
Packaging Options
| Package | DigiKey P/N | Stock | MOQ | Price (1) |
|---|---|---|---|---|
| Tape & Reel (TR) | SIR404DP-T1-GE3TR-ND |
9,000 | 3,000 | $0.8673 |
| Cut Tape (CT) | SIR404DP-T1-GE3CT-ND |
9,811 | 1 | $2.9400 |
| Digi-Reel® | SIR404DP-T1-GE3DKR-ND |
9,811 | 1 | $2.9400 |
Datasheet
Download SIR404DP-T1-GE3 Datasheet (PDF)Need the SIR404DP-T1-GE3?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the SIR404DP-T1-GE3 by Vishay Siliconix? This n-channel 20 v 60a (tc) 6.25w (ta), 104w (tc) surface mount powerpak® so-8 is showing supply chain risk indicators that may affect availability. ICCorders can help secure stock before it becomes unavailable.
The SIR404DP-T1-GE3 is classified under Transistors in the Discrete Semiconductor Products category, part of the TrenchFET® series.
SIR404DP-T1-GE3 Specifications
| Parameter | Value |
|---|---|
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 20 V |
| Current – Continuous Drain (Id) @ 25°C | 60A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 2.5V, 10V |
| Rds On (Max) @ Id, Vgs | 1.6mOhm @ 20A, 10V |
| Vgs(th) (Max) @ Id | 1.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 97 nC @ 4.5 V |
| Vgs (Max) | ±12V |
| Input Capacitance (Ciss) (Max) @ Vds | 8130 pF @ 10 V |
| Power Dissipation (Max) | 6.25W (Ta), 104W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PowerPAK® SO-8 |
| Package / Case | PowerPAK® SO-8 |
Availability & Supply Status
- Status: Long Lead (38wk) – We May Beat This
- Lifecycle: Active
- Distribution Stock: 9,811 units
- Standard Lead Time: 38 weeks
Datasheet
Download the official SIR404DP-T1-GE3 datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source SIR404DP-T1-GE3 from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the SIR404DP-T1-GE3? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
Data last verified: 1 month ago. Availability may have changed — check current stock.
