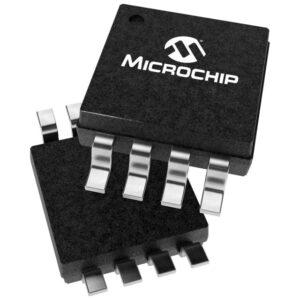

TC7660COA by Microchip Technology
Charge Pump Switching Regulator IC Positive or Negative Fixed -Vin, 2Vin 1 Output 20mA 8-SOIC (0.154", 3.90mm Width)
Component Details
- Part Number
TC7660COA- Manufacturer
- Microchip Technology
- DigiKey P/N
TC7660COA-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- 1,696 units
- Lead Time
- 29 weeks
- Reference Price (1 pc)
- $1.0600
- Price (100 pc)
- $0.8000
Specifications
| Parameter | Value |
|---|---|
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 1.5V |
| Voltage - Input (Max) | 10V |
| Voltage - Output (Min/Fixed) | -Vin, 2Vin |
| Current - Output | 20mA |
| Frequency - Switching | 10kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Datasheet
Download TC7660COA Datasheet (PDF)Need the TC7660COA?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the TC7660COA by Microchip Technology? This charge pump switching regulator ic positive or negative fixed -vin, 2vin 1 output 20ma 8-soic (0.154", 3.90mm width) is showing supply chain risk indicators that may affect availability. ICCorders can help secure stock before it becomes unavailable.
The TC7660COA is classified under Power Management (PMIC) in the Integrated Circuits (ICs) category.
TC7660COA Specifications
| Parameter | Value |
|---|---|
| Function | Ratiometric |
| Output Configuration | Positive or Negative |
| Topology | Charge Pump |
| Output Type | Fixed |
| Number of Outputs | 1 |
| Voltage – Input (Min) | 1.5V |
| Voltage – Input (Max) | 10V |
| Voltage – Output (Min/Fixed) | -Vin, 2Vin |
| Current – Output | 20mA |
| Frequency – Switching | 10kHz |
| Synchronous Rectifier | No |
| Operating Temperature | 0°C ~ 70°C (TA) |
| Mounting Type | Surface Mount |
| Package / Case | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package | 8-SOIC |
Availability & Supply Status
- Status: Long Lead (29wk) – We May Beat This
- Lifecycle: Active
- Distribution Stock: 1,696 units
- Standard Lead Time: 29 weeks
Datasheet
Download the official TC7660COA datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source TC7660COA from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the TC7660COA? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
Data last verified: 6 hours ago. Availability may have changed — check current stock.
