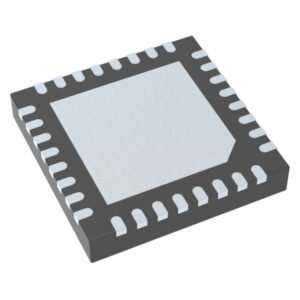

AD7124-8BCPZ by Analog Devices Inc.
24 Bit Analog to Digital Converter 8, 15, 16 Input 1 Sigma-Delta 32-LFCSP (5x5)
Component Details
- Part Number
AD7124-8BCPZ- Manufacturer
- Analog Devices Inc.
- DigiKey P/N
505-AD7124-8BCPZ-ND- Lifecycle
- Active
Stock & Pricing
- Distribution Stock
- Not available
- Lead Time
- 14 weeks
- Reference Price (1 pc)
- $17.7300
- Price (100 pc)
- $12.3534
Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 19.2k |
| Number of Inputs | 8, 15, 16 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-PGA-ADC |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage - Supply, Analog | ±1.8V, 2.7V ~ 3.6V |
| Voltage - Supply, Digital | 1.65V ~ 3.6V |
| Features | PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP (5x5) |
| Mounting Type | Surface Mount |
Datasheet
Download AD7124-8BCPZ Datasheet (PDF)Need the AD7124-8BCPZ?
ICCorders specialises in sourcing hard-to-find components.
Verified, tested, fully traceable. Payment terms available.
Looking for the AD7124-8BCPZ by Analog Devices Inc.? This 24 bit analog to digital converter 8, 15, 16 input 1 sigma-delta 32-lfcsp (5×5) is increasingly difficult to source through standard distribution channels. ICCorders specialises in sourcing hard-to-find and obsolete ICs with full traceability and testing.
The AD7124-8BCPZ is classified under Data Acquisition in the Integrated Circuits (ICs) category.
AD7124-8BCPZ Specifications
| Parameter | Value |
|---|---|
| Number of Bits | 24 |
| Sampling Rate (Per Second) | 19.2k |
| Number of Inputs | 8, 15, 16 |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Data Interface | SPI, DSP |
| Configuration | MUX-PGA-ADC |
| Number of A/D Converters | 1 |
| Architecture | Sigma-Delta |
| Reference Type | External, Internal |
| Voltage – Supply, Analog | ±1.8V, 2.7V ~ 3.6V |
| Voltage – Supply, Digital | 1.65V ~ 3.6V |
| Features | PGA, Temperature Sensor |
| Operating Temperature | -40°C ~ 125°C |
| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Supplier Device Package | 32-LFCSP (5×5) |
| Mounting Type | Surface Mount |
Availability & Supply Status
- Status: Out of Stock – We Can Help
- Lifecycle: Active
- Distribution Stock: Not available through standard distribution
- Standard Lead Time: 14 weeks
Datasheet
Download the official AD7124-8BCPZ datasheet (PDF) for full electrical characteristics, pinout diagrams, and application notes.
Why Source AD7124-8BCPZ from ICCorders?
- Verified & Tested: Every component undergoes rigorous testing. No counterfeits, guaranteed.
- Full Traceability: Complete documentation and chain of custody for every part.
- Global Sourcing Network: Access to stock that standard distributors cannot reach.
- Payment Terms Available: Credit terms for qualified buyers. You don’t pay until you’re satisfied.
Request a Quote
Need the AD7124-8BCPZ? Request a quote today or use our BOM Risk Analysis Tool to check your full bill of materials.
